Products Siphon Turbine

Siphon Turbine

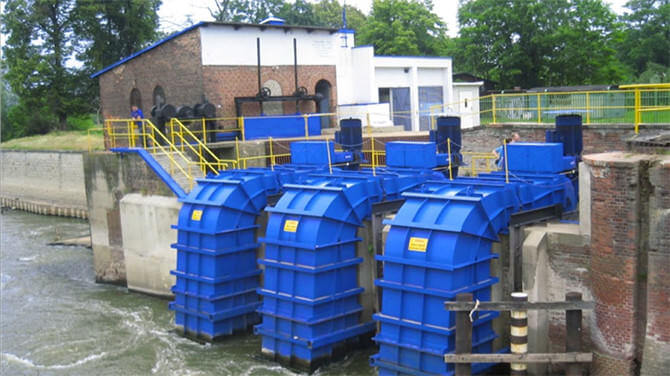

Mavel’s Siphon turbine, (“TM Modular Micro Turbine”) is designed for sites with low flow and low head conditions. It is easily installed, and multiple installations are possible at the same site. We can propose all 4 types of Mavel’s turbines according to the flow and head range.

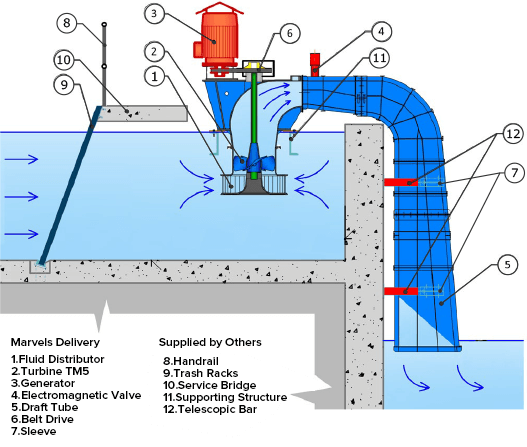

How It Works

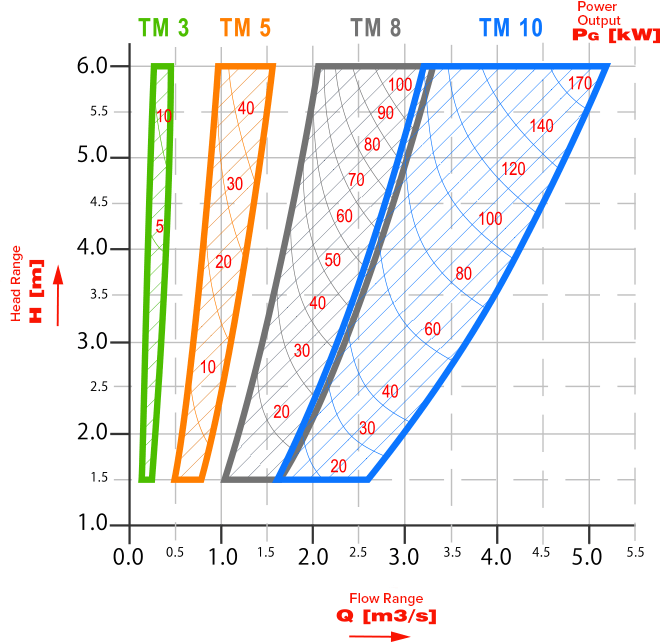

Turbine Selection Table

TM10

Head Range2.0~5.0 [m]

Flow Range2.0~5.0 [m3/s]

Power Output30~160 [kW]

TM8

Head Range2.0~5.0 [m]

Flow Range1.5~3.0 [m3/s]

Power Output20~100 [kW]

TM5

Head Range1.5~6.0 [m]

Flow Range0.7~1.4 [m3/s]

Power Output7~60 [kW]

TM3

Head Range1.5~6.0 [m]

Flow Range0.15~0.40 [m3/s]

Power Output5~20 [kW]
